合吃数量此机重中之重用以各种纸制品产品包装，纸塑结合类，膜类等装潢知料和产品包装知料的复卷修边分切机。

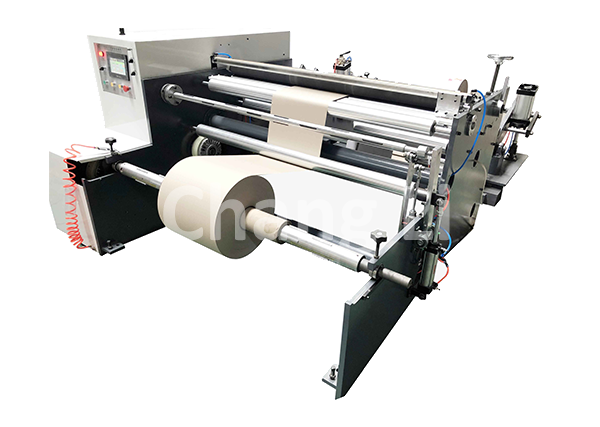

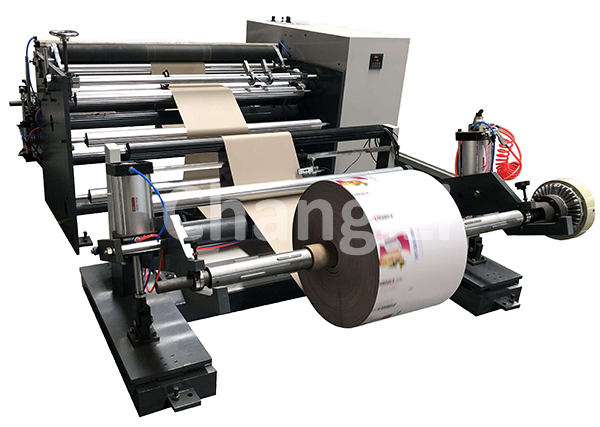

机可及杭州特色 1.机器进行伺服线束定长上料，在绕城高速正常运行中持之以恒高gps精度。2.PLC触摸式屏积极相互计米，米数积极相互确定。3.圆刀\\\\\\\\直刀纵切废边主動尾气排放装配图。4.气动系统式被动放料，收、放魔石配气胀轴。5.主动性立即切断、驻车时随着控制在，预送预测出收护符再将持续收料等攻效。Scope of applicationThis machine is mainly used for re-winding and trimming of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Round knife \\\\\\\\ straight knife slitting automatic waste discharge device.4. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.5. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

舱位 Model		CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
sbs防水参(can)数 MAX.Parent Web Width		1000mm	130mm	1600mm
放(fang)卷的直径 Max.parent Web Diameter		Φ800mm	Φ800mm	Φ800mm
收卷半径 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
带宽 Max.Machine Speed		10-150m/min	10-150m/min	10-150m/min
定长精(jing)准度Fixed length accuracy		±5mm	±5mm	±5mm
总工率 Total Power		3KW	3.5KW	4.5KW
量用 Machine Weight		1000kg	1200kg	1500kg
形(xing)态尺(chi)寸(cun)图 Overall Dimensions 世(shi)界任务电(dian)流 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯(xin)型号规格Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
